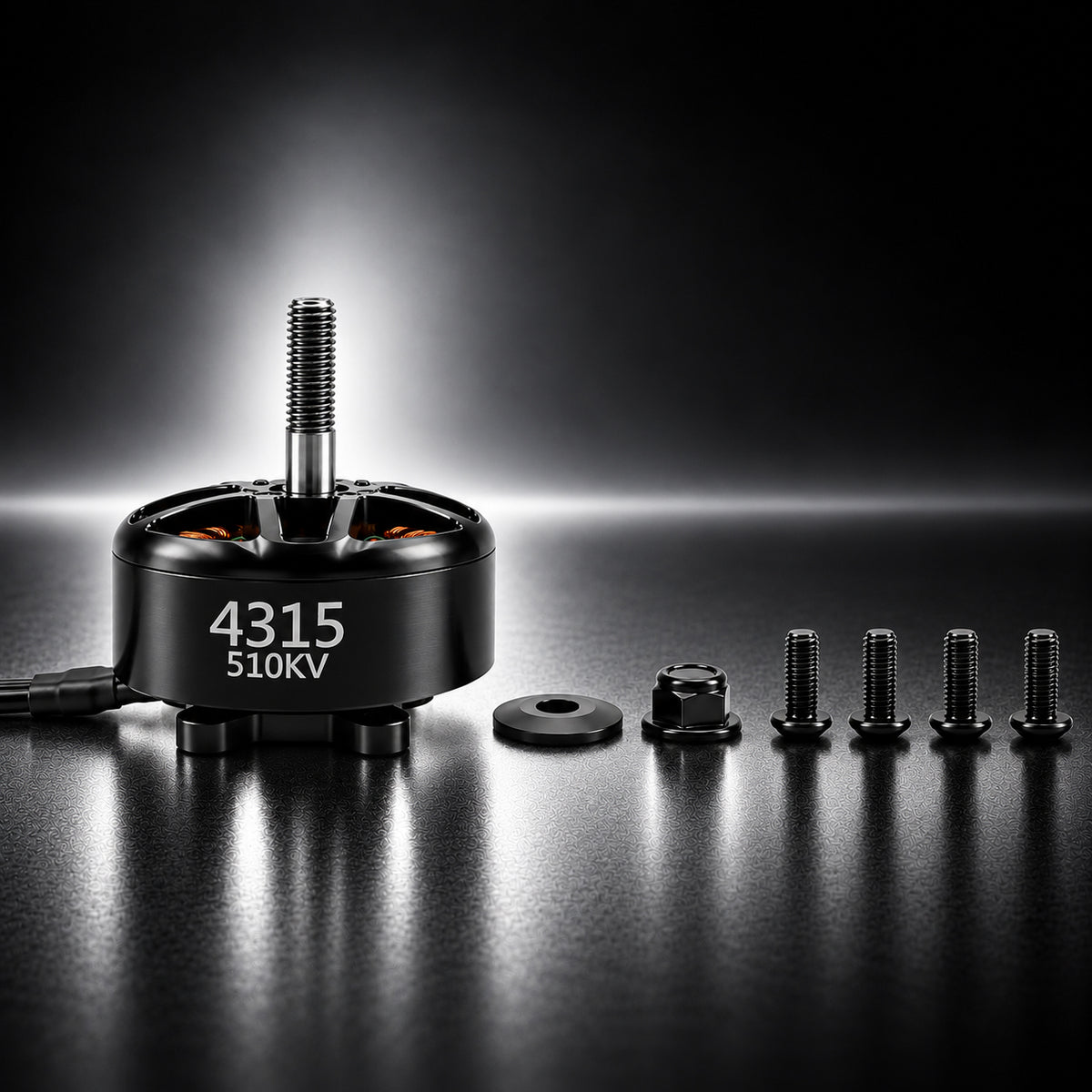

4315 510KV Brushless Motor for 8S Drone Builds
The 4315 510KV brushless motor is an option for larger drone propulsion systems using 8S LiPo power. Manufacturer testing with GF1310 and GF1507 propellers provides two reference configurations for evaluating thrust, current draw and propeller selection.
The motor features a 12N14P configuration, low-loss winding and precision dynamic balancing. A 6 mm shaft, M6 propeller mounting thread and M4 mounting holes on a 30 × 30 mm pattern provide defined mechanical interfaces for airframe integration. The listed motor weight is 206 g.
Key Features
-
510KV winding: specified for 8S LiPo operation.
-
Two tested propeller configurations: manufacturer data for GF1310 and GF1507 propellers.
- 206 g listed motor weight.
-
Precision dynamic balancing: combined with low-loss winding.
-
6 mm shaft: with an M6 propeller mounting thread.
-
30 × 30 mm mounting: M4 mounting holes.
Specifications
4315 510KV Motor Specifications
| Model |
4315 |
| KV Rating |
510KV |
| Battery Compatibility |
8S LiPo, 33.6 V maximum charge voltage |
| Configuration |
12N14P |
| Motor Weight |
206 g |
| Shaft Diameter |
6 mm |
| Propeller Mounting Thread |
M6 |
| Mounting Pattern |
30 × 30 mm, M4 |
| Phase Resistance |
24.8 mΩ |
| Tested Propellers |
GF1310 / GF1507 |
Manufacturer Bench Tests
-
GF1507 propeller: 8,260 g of thrust at 100% throttle, 32.59 V and 113.60 A. Recorded input power: 3,702.19 W.
-
GF1310 propeller: 7,243 g of thrust at 100% throttle, 32.70 V and 98.81 A. Recorded input power: 3,230.99 W.
Performance figures apply to the 510KV version under the manufacturer's stated test conditions. Confirm frame clearance and power-system compatibility for your selected propeller. Bench thrust is not an aircraft payload rating.
