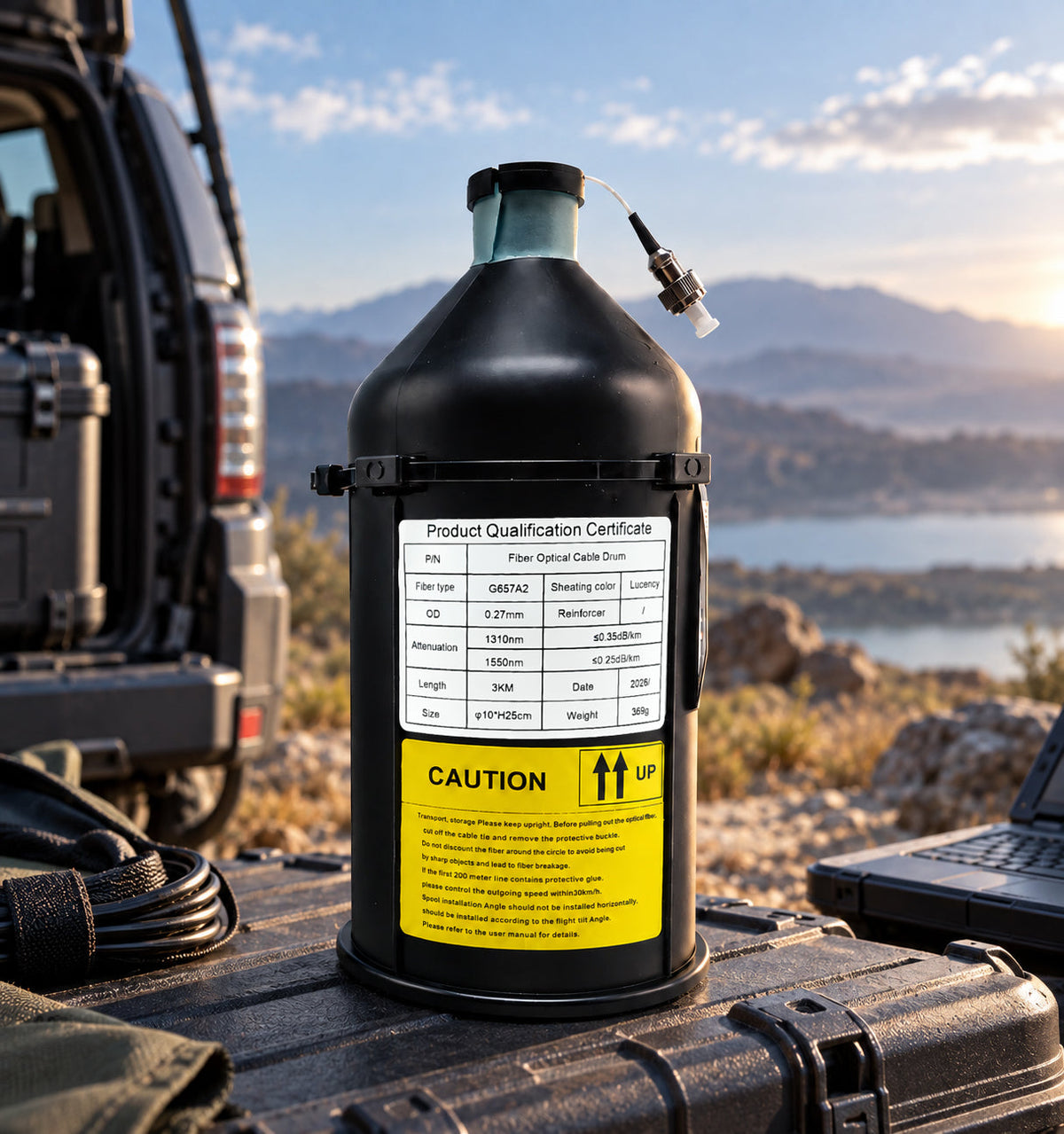

Under-Frame vs Side-Mounted Fiber Optic Spools for FPV Drones
For FPV drones used in security operations, infrastructure access, and high-risk field deployment, a fiber optic spool is more than a cable storage component. Its mounting position affects center of gravity, cable payout direction, bending stress, frame clearance, and the operator's ability to deploy the aircraft consistently.
Consumer-sector buyers often focus only on spool capacity and total cable length. B2B procurement teams must evaluate how the spool behaves during acceleration, turning, landing, transport, and repeated deployment. A spool that looks acceptable during a static demonstration may create cable drag, frame interference, or unstable handling once the aircraft is moving.
This guide compares under-frame and side-mounted fiber optic spool configurations from a pure engineering, integration, and fleet-maintenance perspective.
1. Understanding Fiber Optic Spool Mounting
A fiber optic spool stores and releases the cable behind the aircraft during operation. The spool must remain mechanically secure while allowing the cable to pay out with controlled tension and without sharp bending.
Two common mounting approaches are an under-frame configuration and a side-mounted configuration.
- Under-frame mounting: The spool is positioned below or close to the central frame area, usually aligned with the aircraft's longitudinal centerline.
- Side-mounted installation: The spool is installed on the left or right side of the frame, often to keep the underside clear or simplify access.
Neither layout is automatically suitable for every aircraft. The correct selection depends on the spool diameter, cable length, aircraft width, payload location, propeller clearance, release direction, and expected deployment surface.
The wrong mounting position does not just make the aircraft look unbalanced. It can introduce lateral loading, cable rubbing, inconsistent payout, and avoidable maintenance work.
2. When to Choose an Under-Frame Spool
An under-frame spool is usually the better option when the aircraft requires a centered load path and the frame provides enough ground clearance.
- Centralized mass distribution: Suitable when the spool is heavy enough to affect balance and should remain close to the aircraft centerline.
- Consistent left-right handling: Appropriate when the fleet must maintain similar roll behavior regardless of operator or deployment direction.
- Rearward cable payout: Useful when the cable should leave the aircraft from the rear and remain clear of the camera and forward payload.
An under-frame layout can reduce lateral imbalance, but the clearance beneath the spool must be checked with the complete landing gear and payload installed.
3. When to Choose a Side-Mounted Spool
A side-mounted spool can be more practical when the underside of the aircraft is occupied or when the maintenance team needs direct access to the spool.
- Limited bottom clearance: Suitable when the aircraft uses a low landing configuration or carries a downward-facing camera or payload.
- Fast spool replacement: Useful when the spool must be inspected or changed without removing the aircraft from its landing platform.
- Dedicated cable exit routing: Appropriate when the frame geometry provides a clean side path that keeps the cable away from propellers, landing gear, and payload brackets.
Side mounting requires careful balance compensation. The installation should be repeated at the same height and distance from the centerline across every production unit.
4. Common Misunderstandings
More cable capacity vs better deployment: A larger spool provides more cable length, but it also adds mass and rotational inertia. If the frame, motor system, and mounting points are not designed for that load, the aircraft may become harder to control.
Centered spool vs zero cable effect: An under-frame spool can improve static balance, but the cable still creates changing tension as it pays out. The aircraft must be tested during actual deployment rather than only during a static hover.
Side-mounted access vs simple integration: A side spool may be easier to remove, but it can increase roll imbalance and expose the cable to frame edges or nearby structures. Service access does not replace proper routing design.
5. Comparison Table
| Evaluation Area | Under-Frame Spool | Side-Mounted Spool |
|---|---|---|
| Payload | Uses central frame space and may reduce bottom clearance | Leaves the underside more available for downward-facing payloads |
| Performance | Better left-right balance and more centralized mass distribution | May create lateral imbalance and require additional structural validation |
| Adaptation Range | Suitable for rearward payout and centered airframe layouts | Suitable for low-clearance frames and service-oriented configurations |
| Cost | Usually requires stronger lower-frame and landing-clearance design | May require reinforced side brackets and more precise balance control |
| Recommended Application | Fleet-standard builds requiring consistent handling | Aircraft with limited underside space or frequent spool replacement |
6. Overlooked Engineering Problems
Cable bend radius at the exit point: Fiber optic cable should not be forced into a sharp bend immediately after leaving the spool. A tight bend can increase optical loss or damage the cable structure even when the outer jacket appears intact. The cable guide should provide a smooth transition and avoid a bend radius smaller than the cable manufacturer's specified limit.
Changing center of gravity during payout: As the cable leaves the spool, the mass distribution changes. With a side-mounted spool, the aircraft may experience a noticeable change in lateral balance. With an under-frame spool, the vertical load path may change as the cable is released. Both configurations require testing with partial and near-empty spool conditions.
Spool movement during acceleration: A bracket that is rigid during a static inspection may flex under acceleration or sudden braking. Even small movement can cause cable rubbing, fastener loosening, and inconsistent payout. The mounting bracket should be checked under the actual spool weight and cable tension.
Contact with landing gear or propeller wash: The cable exit must remain clear of propellers, landing legs, camera brackets, and sharp frame edges. Propeller airflow can also push the loose cable toward the aircraft, increasing the risk of rubbing or entanglement.
7. Procurement Checklist
- Where is the spool's center of mass relative to the aircraft centerline and payload?
- What is the minimum permitted bend radius for the proposed fiber optic cable?
- Has cable payout been tested with a full spool, half spool, and near-empty spool?
- Can the supplier show that the cable exit remains clear of propellers, landing gear, and payload brackets?
- How much does the center of gravity shift when the spool is installed and during cable release?
- Can the spool and mounting bracket be replaced without changing the cable exit angle or aircraft alignment?
8. Conclusion
Choose an under-frame spool when centralized mass distribution, consistent roll behavior, and rearward cable payout are the priority. Choose a side-mounted spool when underside clearance, service access, and a dedicated side routing path provide a clear operational advantage.
A fiber optic spool is part of the flight system. Its mounting position must be engineered, tested, and repeated at BOM level.
FAQ
Q1: Is an under-frame spool always better balanced?
It usually provides a more centralized load path, but the result depends on the spool position, cable tension, payload location, and landing gear height. Actual payout testing is still required.
Q2: What is the main risk of side-mounted fiber optic spools?
The main risk is lateral imbalance. The spool can change the aircraft's roll behavior and may make cable routing more vulnerable to frame edges, landing gear, or nearby structures.
Q3: Can a fiber optic cable be bent sharply at the spool exit?
No. The cable must follow the manufacturer's minimum bend-radius specification. A sharp exit bend can increase optical loss and damage the internal structure of the cable.
Q4: Does the aircraft behave differently as the cable is released?
Yes. The mass distribution and cable tension change during payout. The aircraft should be evaluated with different spool levels and different cable-release conditions before fleet deployment.
Q5: What information should I provide when requesting a fiber optic spool quotation?
Provide the required cable length, spool dimensions, aircraft frame size, payload position, desired payout direction, minimum bend radius, operating environment, and replacement procedure. This allows the supplier to design the mounting system around the complete aircraft.
