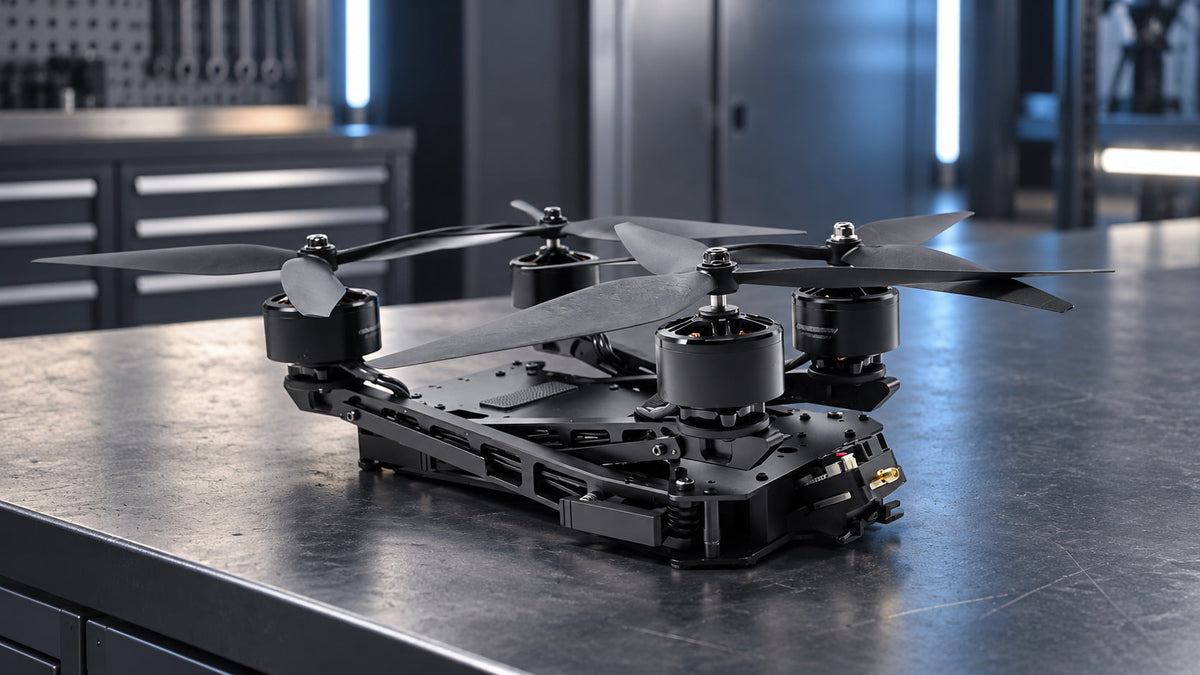

Folding vs Fixed Frames for Commercial FPV Drone Fleets

For commercial FPV drones used in infrastructure inspection, industrial observation, and rapid field deployment, frame architecture affects more than flight performance. A folding frame can reduce transport volume and speed up storage, while a fixed frame may provide a simpler and more rigid structure.

Consumer-sector buyers often choose a frame based on size or appearance. B2B buyers must evaluate the complete operating cycle: transport, deployment, locking, vibration, maintenance, repeated folding, and production consistency across the fleet.

This guide compares folding and fixed FPV drone frames from a pure engineering, deployment, and fleet-maintenance perspective.

1. Understanding Folding and Fixed Frames

A folding frame uses hinges, pivots, locks, or removable structural joints to reduce the aircraft's packed size. The arms or frame sections can be folded for transport and returned to an operating position before flight.

A fixed frame has a permanent operating geometry. The arms, plates, and main structural sections remain in the same position during transport and deployment.

The main difference is not simply whether the frame can fold. It is whether the operating geometry can be restored accurately every time. A folding mechanism that introduces play, inconsistent arm angles, or cable stress may create more maintenance work than the reduced transport size justifies.

2. When to Choose a Folding Frame

A folding frame is suitable when transport volume and deployment speed are important parts of the operating workflow.

• Frequent transport: Useful when the aircraft moves between inspection sites, vehicles, storage rooms, or temporary operating locations.
• Limited storage space: Appropriate when the aircraft must fit into compact cases, shelving, or standard transport compartments.
• Rapid setup requirements: Suitable when operators need to move from storage to pre-flight inspection without removing multiple frame components.

A folding frame should have a clear locked position and a visible or tactile confirmation that the mechanism is fully secured. The operator should not need to judge alignment by eye alone.

3. When to Choose a Fixed Frame

A fixed frame is usually the better option when structural simplicity, stiffness, and minimum maintenance are the main priorities.

• Stable operating locations: Suitable when the aircraft is stored close to the deployment area and transport volume is not a major constraint.
• High structural rigidity: Appropriate when the frame must maintain a consistent relationship between motors, payloads, and flight-control components.
• Lower maintenance complexity: Useful when the fleet should have fewer hinges, locking parts, and potential wear points.

A fixed frame may require a larger case or more storage space, but its geometry is usually easier to verify during production and routine inspection.

4. Common Misunderstandings

Folding vs faster deployment: A foldable frame is only faster when the locking process is simple and repeatable. If the operator must check several hinges, cables, and fasteners manually, setup time may increase.

Fixed vs impossible to transport: A fixed frame can still be transported efficiently with the correct case and internal layout. The difference is that the aircraft keeps its operating geometry during transport.

More locking points vs more reliability: Additional locks may improve structural support, but they also create more inspection points and more opportunities for incorrect assembly or wear.

5. Comparison Table

Evaluation Area	Folding Frame	Fixed Frame
Payload	May add hinge, lock, and reinforcement weight	Uses a simpler continuous structural layout
Performance	Can perform well when the folding joints lock accurately	Usually provides more predictable stiffness and alignment
Adaptation Range	Better for transport-limited and rapidly changing locations	Best for stable deployment areas and fixed operating geometry
Cost	Higher mechanism, inspection, and maintenance requirements	Lower structural complexity and fewer wear points
Recommended Application	Mobile commercial fleets requiring compact storage	Stationary or workshop-supported fleets prioritizing rigidity

6. Overlooked Engineering Problems

Hinge play affects motor alignment: A small amount of movement at a folding joint can change the arm position under load. Over time, this may create vibration, uneven handling, or different flight behavior between folded and unfolded cycles.

Cables can be damaged during folding: Motor wires, signal cables, and antenna leads may be pinched, stretched, or bent repeatedly near the hinge. The cable path must include enough controlled movement without allowing the wire to contact sharp edges.

Lock contamination: Dust, moisture, and small particles can prevent a locking mechanism from seating fully. The design should allow the operator to inspect and clean the lock without disassembling the entire frame.

Repeated-cycle wear: A folding frame may be opened and closed many times during its service life. The hinge, lock, locating surface, and fasteners should be tested through repeated cycles, not only during the first assembly.

Incorrect partial locking: A frame can appear unfolded while one locking point is not fully engaged. A professional design should provide a clear mechanical stop, visual indicator, or other confirmation of the locked state.

7. Procurement Checklist

• How many folding and locking cycles has the frame completed during validation?
• How does the mechanism confirm that the arms are fully opened and locked?
• Can the frame maintain the same arm angle and motor alignment after repeated folding?
• How are motor wires, signal cables, and antenna leads protected around the folding joints?
• Can hinges, locks, pins, and wear parts be replaced separately?
• What inspection is required before each deployment after transport?

8. Conclusion

Choose a folding frame when compact transport, storage efficiency, and repeated mobile deployment are important. Choose a fixed frame when structural simplicity, stiffness, and lower maintenance complexity matter more.

A folding frame must return to the same geometry every time.

FAQ

Q1: Is a folding frame less rigid than a fixed frame?

It can be, because hinges and locking interfaces introduce additional structural parts. However, a well-designed folding frame can provide reliable stiffness when the joints are accurately located and properly locked.

Q2: Does a folding frame reduce flight performance?

Not automatically. The effect depends on the hinge design, added weight, frame stiffness, cable routing, and locking accuracy. The folded and locked configurations should be tested as complete aircraft assemblies.

Q3: How often should folding joints be inspected?

They should be checked before deployment and after transport, hard landings, or abnormal vibration. Pay attention to play, incomplete locking, damaged pins, and cable wear.

Q4: Can folding frames support payloads?

Yes, but the payload position and weight must be considered when designing the hinge and locking structure. Payload vibration and changing center of gravity should be validated with the final configuration.

Q5: What should I provide when requesting a folding frame quotation?

Provide the packed-size limit, open-frame dimensions, aircraft weight, payload position, transport method, required deployment time, expected folding cycles, and maintenance conditions.
