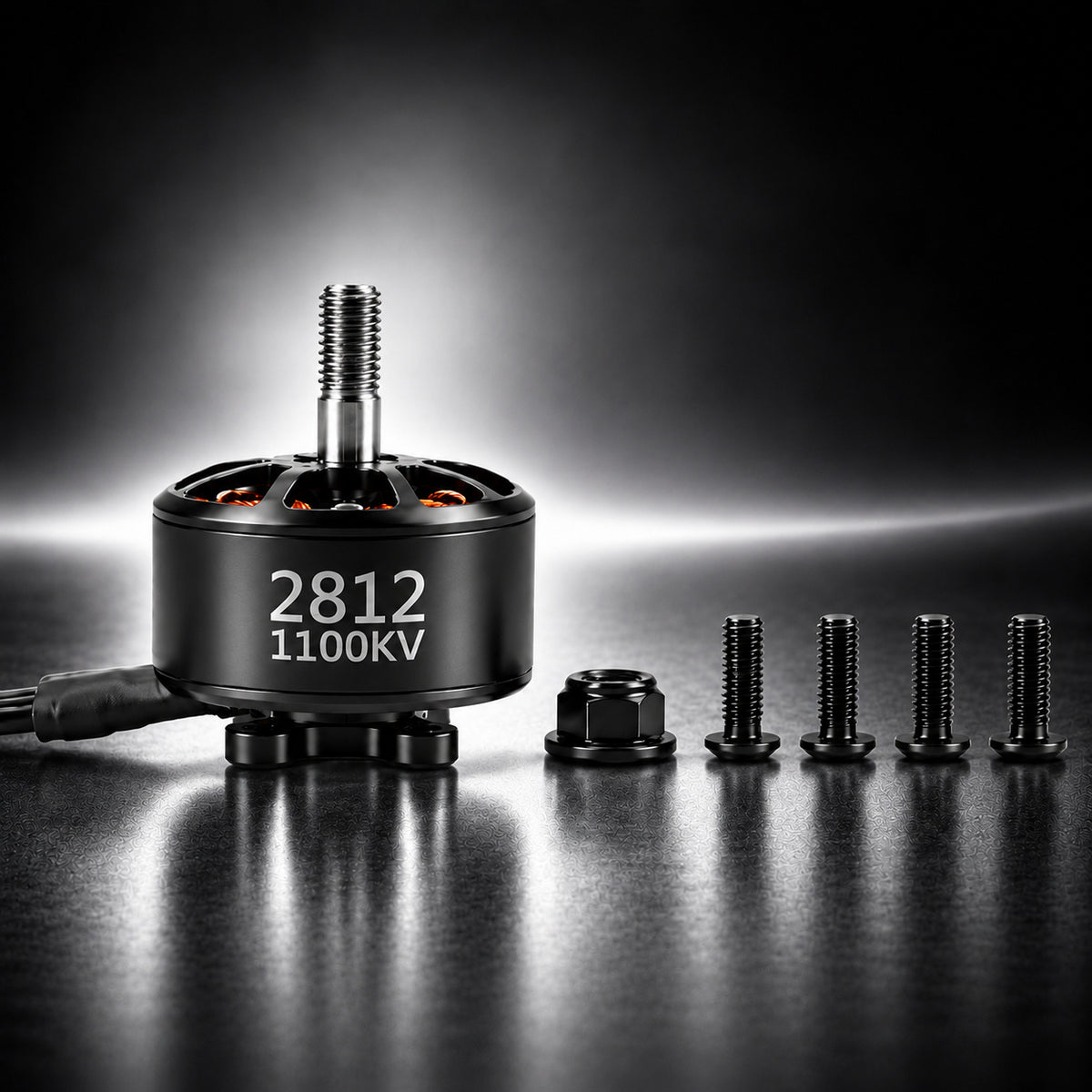

2812 1100KV Brushless Motor for 7-Inch FPV Builds
Build your next 7-inch FPV platform around the 2812 1100KV brushless motor. Specified for 6S LiPo power and tested with a 7040 propeller, it combines a 77 g motor weight with documented thrust data to help you plan your propulsion setup.
The motor features low-loss winding and precision dynamic balancing, with a 12N14P configuration and a 5 mm shaft. M3 mounting holes on a 19 × 19 mm pattern provide clear fitment specifications, while 250 mm 18 AWG silicone leads offer flexibility when routing connections to the ESC.
Key Features
-
1100KV winding: specified for 6S LiPo operation.
-
7-inch propeller test data: tested with a 7040 propeller.
-
77 g motor weight: a defined reference for build planning.
-
Precision dynamic balancing: combined with low-loss winding.
-
19 × 19 mm mounting: M3 mounting holes.
-
Silicone leads: 18 AWG wire with a listed length of 250 mm.
Specifications
2812 1100KV Motor Specifications
| Model |
2812 |
| KV Rating |
1100KV |
| Battery Compatibility |
6S LiPo, 25.2 V maximum charge voltage |
| Configuration |
12N14P |
| Motor Weight |
77 g |
| Shaft Diameter |
5 mm |
| Mounting Pattern |
19 × 19 mm, M3 |
| Silicone Wire |
18 AWG, 250 mm |
| Phase Resistance |
60.0 mΩ |
| Tested Propeller |
7040 |
Manufacturer Bench Test
With a 7040 propeller at 100% throttle, the manufacturer recorded 2,082.78 g of thrust at 24.16 V and 32.54 A, with an input power of 786.14 W.
Performance figures are from the manufacturer's bench test. Actual results depend on the propeller, battery, ESC and operating conditions. Bench thrust is not an aircraft payload rating.
