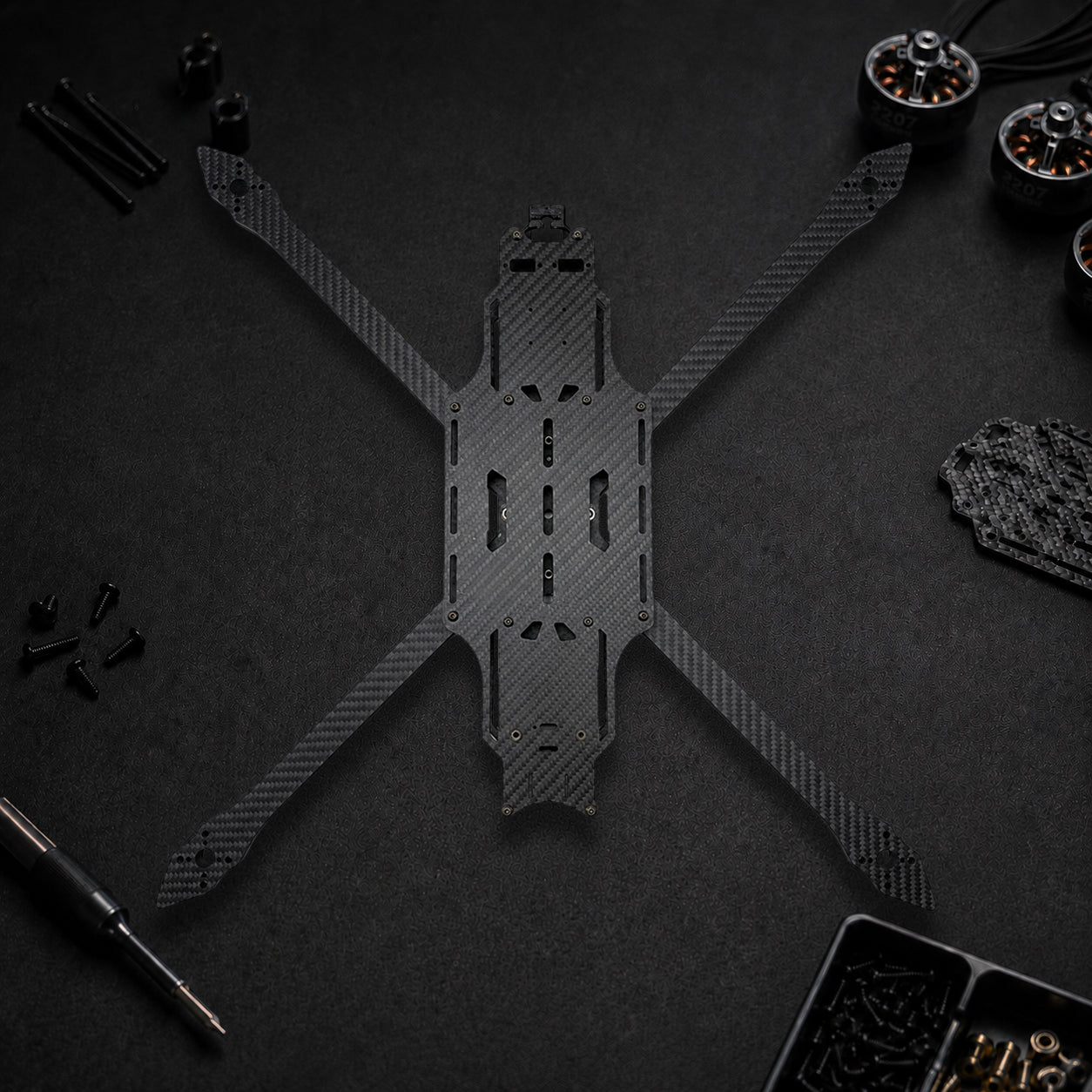

True-X vs Deadcat Frames: Heavy-Lift Drone Geometry
zhanghaowen
When your commercial drone fleet graduates from 5-inch freestyle rigs to 7-inch, 10-inch, or even 13-inch heavy-lift platforms carrying multi-kilogram payloads, frame geometry stops being a "preference" and becomes an engineering decision with real financial consequences.
Two configurations dominate the industrial FPV market: True-X and Deadcat. The wrong choice doesn't just affect flight feel — it impacts center-of-gravity (CG) management, motor thermal headroom, and ultimately your fleet's mean time between failures (MTBF).
This guide is written for procurement managers and fleet operators evaluating frame platforms at the BOM level. No consumer fluff.
1. Operating Condition Mapping
| Operating Condition | Recommended Geometry | Reason |
|---|---|---|
| Front-mounted heavy payload (camera, radar, dropper) | Deadcat | Forward arm positioning shifts CG forward, compensating tail battery weight |
| Evenly distributed payload (top-mounted, symmetric) | True-X | Symmetrical torque on all four arms, simpler PID tuning |
| High-speed cruise (>80 km/h) | True-X | Better aerodynamic symmetry, consistent yaw authority |
| Confined-space navigation | Deadcat | Unobstructed forward FOV, superior pilot awareness |
| 7-inch and below, light payload | Either | Geometry differences negligible under light load |
| 10-inch and above, heavy payload | Deadcat | Long front arms naturally accommodate forward mass distribution |
The dividing line is clear: once you mount a payload forward of the frame center — which is nearly every commercial inspection, delivery, or mapping drone — Deadcat geometry starts pulling ahead.
2. Myth-Busting: It's Not About the Label
Myth #1: "True-X is inherently more stable, so commercial platforms must use it."
True-X arms are equal in length, producing perfectly symmetrical torque. Plug-and-play PID defaults work fine — with no payload or an evenly distributed one. But mount 500 g or more forward, and the CG shifts. The front motors run hot from chronic overload; the rear ones coast. The result is uneven motor temperatures and mismatched service life across the four corners.
Myth #2: "Deadcat is a freestyle frame, not industrial."
Deadcat did originate in the freestyle scene — for unobstructed GoPro footage. But industrial Deadcat frames share nothing but the arm layout with their consumer cousins. Commercial Deadcat platforms use thicker carbon plates, additional layers, reinforced motor mounts, and heavy-lift engineering standards throughout. Don't confuse the concept with the execution.
3. Specification Comparison
| Parameter | True-X | Deadcat | Notes |
|---|---|---|---|
| Arm lengths | All equal | Front shorter, rear longer | Deadcat front arms typically 15–20% shorter |
| Forward FOV | Propellers in frame | Completely unobstructed | Critical for FPV piloting and AI vision modules |
| CG adaptability | Best for center-mounted payloads | Best for front-mounted payloads | ~80% of commercial use cases are front-mounted |
| PID tuning effort | Low (symmetric defaults) | Moderate (per-motor calibration) | Front and rear motors require separate profiles |
| Front motor thermal load | Rises with forward payload | Within design range | Directly impacts MTBF |
| Wind resistance stability | Good symmetry | Requires tuning compensation | Betaflight/INAV yaw compensation available |
| Foldability & portability | Limited | Superior | Front arms fold flat, reducing case volume ~30% |
| Typical application | Racing, light survey | Inspection, security, logistics, SAR | — |
4. Engineering Pitfalls Procurement Teams Miss
Pitfall 1: Front motor overheating ≠ motor quality issue
If your Deadcat front motors keep running hot, the fault is rarely the motor itself. In 90% of cases, it's an improper arm-length ratio. Verify that the front-to-rear arm ratio falls between 0.78 and 0.85. Budget frames below 0.75 will chronically overload the front two motors.
Pitfall 2: Carbon plate specs go deeper than marketing claims
An industrial Deadcat frame requires a bottom plate of 3 mm minimum T300 all-3K twill carbon and arm thickness of at least 5 mm. Frames sold as "3K carbon" but reinforced with fiberglass or built from non-T300 material will show delamination after roughly 100 cycles of sustained heavy-lift flight. Demand a material traceability certificate from your supplier.
Pitfall 3: Countersunk motor-mount holes are non-negotiable
If the motor-mount screw holes lack a countersunk finish, M3 bolt heads will abrade the carbon surface under sustained vibration. This leads to bolt loosening and, in worst cases, mid-flight motor detachment. Industrial-grade frames must use countersunk holes + M3 Grade 12.9 steel bolts + medium-strength thread locker as standard.
Pitfall 4: Case dimensions kill logistics efficiency
Deadcat frames with foldable front arms reduce packed volume by approximately 30% compared to an equivalent True-X platform. If your client needs rapid vehicle-based redeployment across multiple inspection sites, packing efficiency directly impacts per-shift operational cost. This is rarely considered at the BOM stage but hits hard during logistics planning.
5. Pre-Purchase Verification Checklist
- Confirm primary payload type and mounting position (front / center / top)
- Obtain arm-length ratio data (Deadcat ideal range: 0.78–0.85)
- Verify carbon material: T300 all-3K, bottom plate ≥ 3 mm, arms ≥ 5 mm
- Inspect motor-mount holes for countersunk finishing
- Confirm bolt specification: M3 Grade 12.9 steel
- Measure folded dimensions and compare case volume requirements (Deadcat typically saves ~30%)
- Request 50-cycle motor temperature logs from the supplier for the same configuration
- Reserve at least 15% spare arms per fleet order — Deadcat front and rear arms are not interchangeable, so plan separate spares for each position
6. Conclusion: Match the Geometry to the Mission
Frame geometry is not a style choice — it is a load-distribution decision. If your fleet operates light, center-loaded survey drones on 7-inch platforms, True-X offers simpler setup, lower tuning overhead, and perfectly adequate performance. But once you step into 10-inch to 13-inch territory with forward-mounted cameras, sensors, or delivery payloads, Deadcat geometry stops being optional. The unobstructed forward FOV, natural CG compensation, and superior fold-down logistics make it the default engineering recommendation for the vast majority of commercial heavy-lift applications. Choose the frame that matches your payload, not the one that matches your sticker collection.
Frequently Asked Questions (FAQ)
Q1: Can I convert a True-X frame to Deadcat geometry?
No. The motor-mount positions, arm lengths, and carbon plate cutouts are fixed at manufacturing. Retrofitting would require entirely new arms and center plates — effectively buying a new frame. Choose your geometry before placing the order.
Q2: Does Deadcat geometry reduce total thrust?
Negligibly. Because the front motors sit slightly closer to the CG, they require marginally higher throttle to match hover torque — typically 3–5% more. This is well within any commercial motor's continuous rating and has no measurable impact on endurance for properly specified platforms.
Q3: Why do Deadcat frames cost more than True-X?
The front and rear arms are different lengths, requiring separate CNC cutting programs, separate quality-control jigs, and separate spare-part inventory. This adds manufacturing complexity compared to True-X, where all four arms are identical. The price difference reflects engineering, not marketing.
Q4: Which frame geometry works best with fiber optic spool modules?
Deadcat. The forward-mounted payload position naturally accommodates a fiber optic spool module, and the unobstructed forward camera view ensures the pilot maintains visual reference during tethered flight. True-X frames with front-mounted spools suffer from propeller-in-view obstruction.
Q5: What should I ask my supplier before committing to a frame platform?
Request the arm-length ratio, carbon material certificate, motor-mount finish documentation, and folded case dimensions. If the supplier cannot produce these four data points immediately, they are likely reselling consumer-grade frames under an industrial label.
