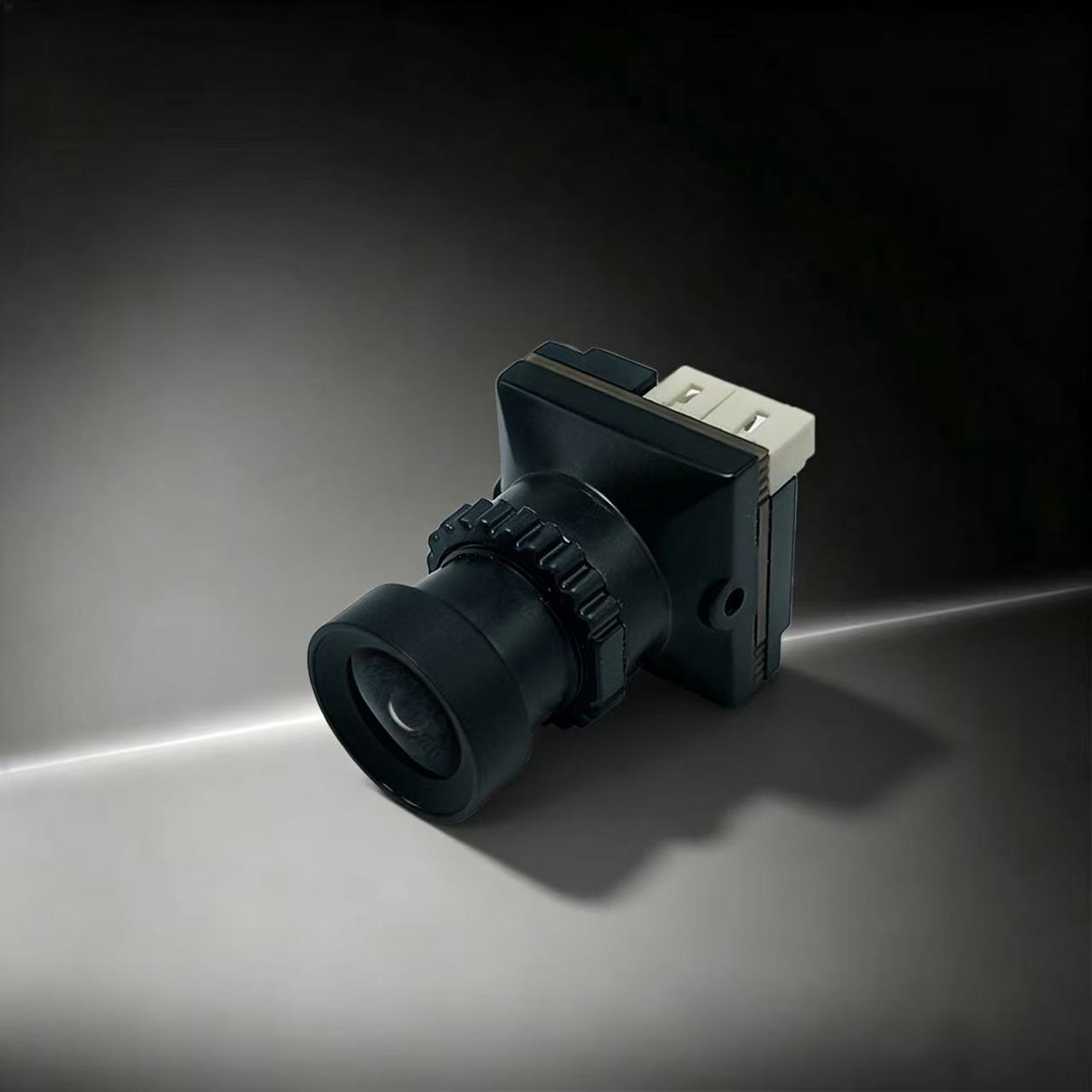

Overview Designed for industrial and commercial FPV drone applications, the QINKOFPV Lux Pro1 1800TVL camera delivers clear image transmission, wide-angle vision, and reliable performance across a variety of complex flight conditions. Its compact 19.2mm × 19.2mm form factor makes it easy to integrate into different heavy-lift multicopters and agile FPV drone builds. Equipped with a high-performance 1/2.4 CMOS sensor, 3D noise reduction, and excellent low-light sensitivity, this camera provides stable and detailed imaging in both daytime and low-visibility commercial environments.
🚀 Core Features & Advantages
-
High-Definition Transmission: Features an 1800TVL resolution combined with a 1/2.4 CMOS sensor (3.2 μm pixel size) for sharp, stable, and highly detailed FPV image output.
-
Starlight Night Vision: Delivers excellent low-light performance with an F1.0 aperture and 0.0001Lux sensitivity, ensuring clear visibility during nighttime industrial inspections.
-
Ultra-Wide FOV: Precision-engineered with a 135° field of view (H=105°, V=60°) for broader visual coverage and enhanced situational awareness.
-
Broad Voltage Compatibility: Supports a wide working voltage range of DC 5-30V, perfectly suited for demanding high-voltage enterprise FPV drone systems.
-
Ultra-Lightweight Design: Weighs only 7.8g with precise 19.2mm × 19.2mm dimensions, ensuring seamless mechanical integration without adding unnecessary payload weight.
📊 Technical Specifications
-
Model: QINKOFPV Lux Pro1
-
Sensor: 1/2.4 CMOS Sensor
-
Horizontal Resolution: 1800TVL
-
Pixel Size: 3.2 μm
-
Image Aspect Ratio: 16:9
-
Video Format: CVBS / PAL
-
Field of View (FOV): 135° (H=105°, V=60°)
-
Minimum Illumination: F1.0 / 0.0001Lux
-
White Balance: Auto
-
Working Voltage: DC 5V-30V
-
Noise Reduction: 3D
-
Day and Night Mode: Color
-
Operating Temperature: -25℃ to 75℃
-
External Dimensions: 19.2mm × 19.2mm × 29mm
-
Operating Current: 60mA @ 12V
-
Net Weight: 7.8g
📦 Package Includes
- 1 × QINKOFPV 1800TVL FPV Camera (Lux Pro1)
- 1 × Camera Control / Wiring Cable
- 1 × Mounting Hardware Set
🤝 B2B Wholesale & OEM Supply As a dedicated manufacturing facility, QINKOFPV strictly serves B2B clients, regional distributors, and enterprise drone manufacturers.
-
Baseline: B2B Only | Minimum Order Quantity (MOQ): 100 Units.
-
OEM/White-Label: We offer full customization and non-disclosure agreement (NDA) compliance to protect your commercial project margins.
-
Bulk Pricing: Contact our B2B sales team directly for tiered wholesale discounts and industrial integration support.
