Overview

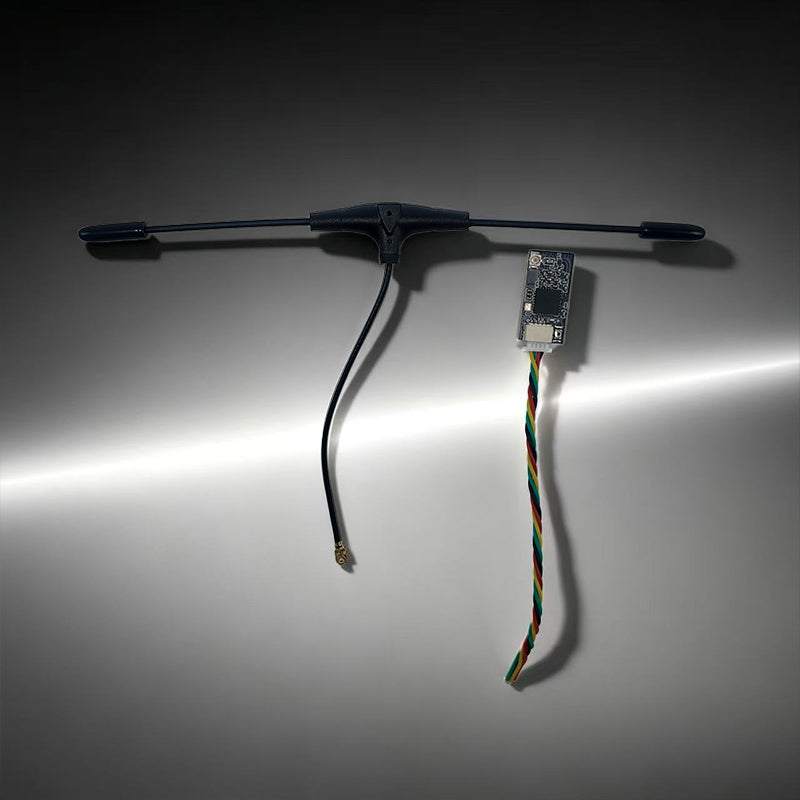

The QINKOFPV ELRS 915MHz receiver is designed for long-range FPV drone control systems. It uses the ESP8285 processing chip and SX1276IMLTRT RF chip, providing reliable low-latency signal transmission for professional FPV and commercial UAV applications.
This receiver supports CRSF protocol and is suitable for long-range FPV drones, heavy-lift platforms, inspection drones, and enterprise UAV systems that require stable control links.
Key Features
-
ELRS 915MHz Control Link: Suitable for long-range FPV drone applications.
-
CRSF Protocol: Supports reliable low-latency communication.
-
Compact Size: 12 x 12 x 3mm receiver design for easy integration.
-
WiFi Firmware Update: Supports firmware update via WiFi.
-
Professional UAV Use: Suitable for FPV drones, inspection platforms, and heavy-lift drone systems.
Detailed Specifications
| Model |
ELRS 915MHz |
| Processing Chip |
ESP8285 |
| RF Chip |
SX1276IMLTRT |
| Power Input |
5V |
| Operating Current |
100mA |
| Operating Protocol |
CRSF |
| Receiving Frequency Range |
915MHz or 868MHz |
| Size |
12 x 12 x 3mm |
| Weight |
4.5g |
| Antenna Connector |
IPEX1 |
| Telemetry Output Power |
<17dBm |
| Firmware Update Method |
WiFi |
