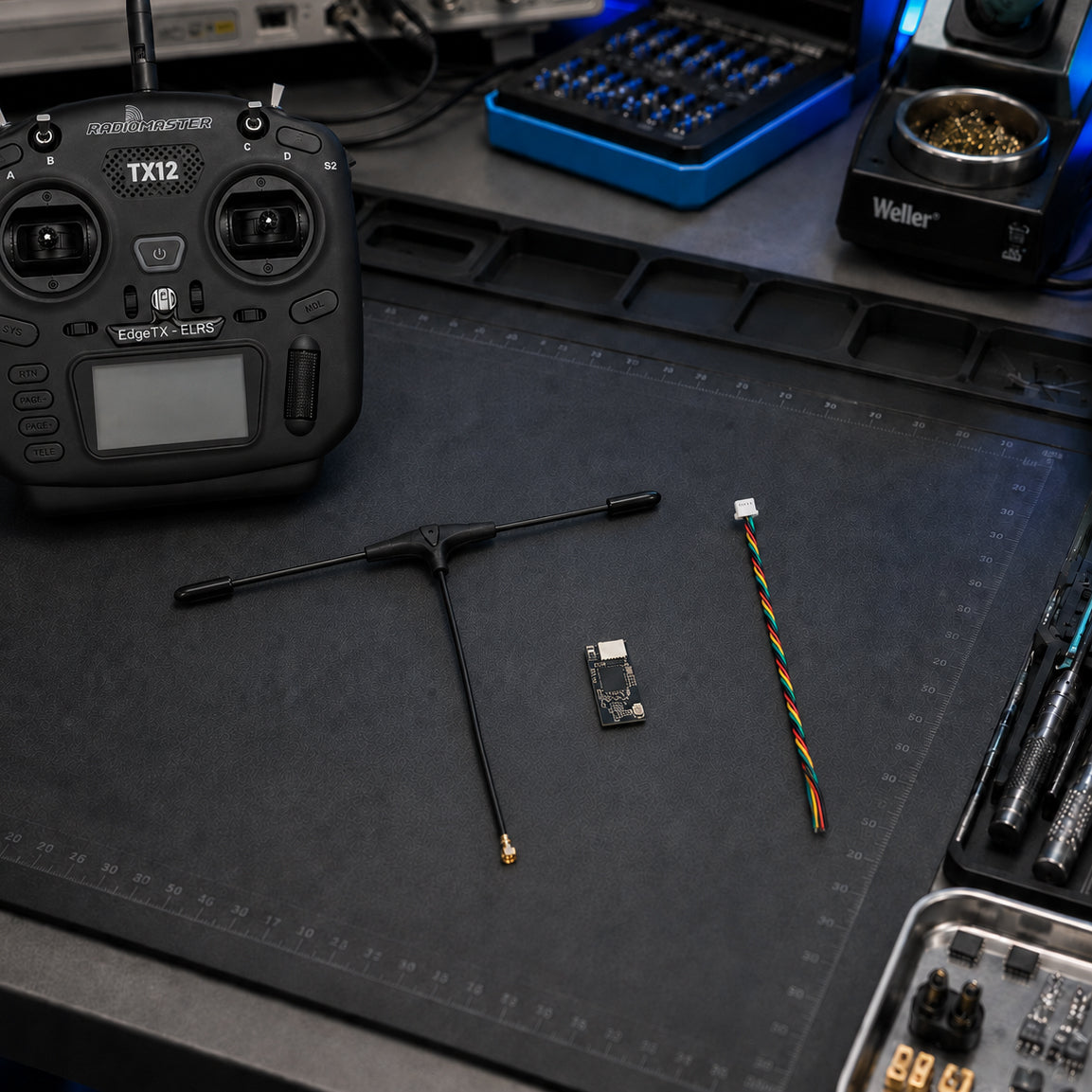

In RF-noisy field operations, FPV drone link failure is often blamed on the receiver, VTX, or firmware. But in many cases, the real cause is physical layout: an antenna hidden behind carbon fiber, a coax cable bent too tightly, a receiver mounted beside high-current ESC wiring, or a video antenna placed too close to the battery lead. For buyers sourcing ELRS receivers and complete FPV systems, antenna placement is not a cosmetic build detail. It is a reliability decision.

The consumer sector usually asks, “How far can it fly?” A B2B procurement manager has to ask, “Can the same link quality be repeated across the entire fleet, under vibration, heat, RF congestion, and fast field handling?” Hobbyist marketing sells range claims. Serious procurement demands repeatable signal architecture.

This guide bypasses hobbyist range talk to help you evaluate FPV antenna placement from a pure engineering perspective. For security operations, infrastructure inspection, low-light deployment, and GPS-challenged environments, the wrong antenna layout does not just reduce range — it creates silent failure risk before the mission even starts.

1. Understanding Antenna Placement at System Level

An FPV drone may carry several signal systems at once: control link, video transmission, GPS, telemetry, and sometimes an additional payload data link. Each system needs physical separation, correct antenna orientation, and protection from carbon fiber shielding, high-current wiring, and heat sources.

Carbon fiber is structurally useful, but it can block or distort RF signals. A receiver antenna buried between plates may look clean, but clean does not mean reliable. A video antenna mounted too close to a battery lead may still work on the bench, then fail when current spikes during aggressive throttle changes.

The wrong choice does not just shorten usable range — it makes failures inconsistent. One unit in a batch may perform well, while another drops link early because the antenna angle, cable route, or mounting position changed during assembly.

2. When Compact Internal Layout Is Acceptable

A compact internal antenna layout can work when the mission profile is short-range, the frame is open enough, and the buyer values shipping protection and fast handling over maximum RF separation.

• Short-range deployment: For controlled operations within 300 to 800 meters, internal or semi-protected antenna mounting may be acceptable if link testing is done after final assembly.
• High handling frequency: Training fleets and distributor demo units may benefit from antennas protected inside the frame to reduce damage during packing and transport.
• Open frame structure: If the carbon plates do not fully shield the antenna path, compact mounting can still provide stable performance for moderate field use.

3. When External Isolated Antenna Layout Is Necessary

External isolated antenna placement becomes necessary when the drone is expected to operate in RF-noisy environments, longer distance windows, low-altitude obstruction, or mission-critical field conditions. In these cases, antenna visibility and separation matter more than a clean-looking frame.

• RF-noisy deployment zones: Urban infrastructure, industrial sites, and dense operator environments can create interference that exposes weak antenna layout quickly.
• Longer field operation: When stable control and video links are required beyond 1 kilometer, receiver and VTX antenna placement must be treated as part of the RF system, not as final assembly decoration.
• Compact high-current builds: Heavy ESC load, powerful FPV video transmitters, and tight stack layouts increase the need for physical separation and disciplined cable routing.

4. Common Misconceptions

High Output Power vs Clean RF Layout: Increasing VTX power does not fix a bad antenna position. If the antenna is blocked by carbon fiber, mounted near electrical noise, or connected through damaged coax, higher power may add heat without delivering stable field performance.

Long Antenna vs Better Signal: A longer visible antenna is not automatically better. Antenna type, frequency match, ground clearance, orientation, coax quality, and mounting angle all matter. Hobbyist marketing turns antenna length into a visual promise. Engineering procurement checks the full signal path.

5. Comparison Table

Factor	Compact Internal Layout	External Isolated Layout
Payload	Lower exposure, cleaner packing, reduced antenna breakage	Slight added mounting hardware and more exposed antenna structure
Performance	Acceptable for short-range and controlled RF conditions	Stronger link stability in RF-noisy, obstructed, and longer-range field use
Adaptation Range	Suitable for training, demo, and short-range inspection units	Suitable for security operations, infrastructure inspection, and mission-critical fleets
Cost	Lower assembly cost and faster production	Higher labor cost due to mounts, routing control, and extra RF validation
Use Case	Price-sensitive batches where antenna protection matters more than maximum signal margin	Field fleets where link failure cost is higher than controlled assembly cost

6. Overlooked Engineering Issues

Coax Cable Damage Can Hide Until Field Use: A coax cable may look normal after assembly but still be damaged by tight bending, repeated canopy pressure, or vibration near the connector. In mass production, even a 5mm routing difference can change stress on the cable. This can create random video breakup or control-link instability that is difficult to reproduce on the bench.

Receiver and VTX Antennas Should Not Fight Each Other: In compact FPV frames, control antennas, video antennas, GPS modules, and power wiring are often forced into the same small space. If the supplier does not define separation rules, one subsystem may pollute another. A good sample does not prove a good batch unless the antenna layout is locked and inspected.

7. Pre-Procurement Checklist

• Where are the receiver, VTX, and GPS antennas mounted in the final production layout?
• Are any antennas blocked by carbon fiber plates, battery position, payload brackets, or camera mounts?
• What minimum separation is maintained between antennas, ESC power wires, VTX, and battery leads?
• Is coax cable routing protected from sharp carbon edges, heat zones, and repeated canopy pressure?
• Will the factory perform link validation after final assembly, not only with loose electronics on the bench?

8. Conclusion

Antenna placement is one of the cheapest areas to ignore and one of the most expensive areas to troubleshoot after delivery. For B2B buyers, stable RF performance comes from layout discipline, not just component selection.

The real procurement question is not whether one prototype can fly far. The question is whether every unit in the batch can keep the same signal margin under field stress.

Range is advertised. Reliability is engineered.

FAQ

Q1. Why do FPV drones lose signal even with good receivers?

Good receivers can still perform poorly if the antenna is blocked, damaged, badly oriented, or placed near electrical noise. Link reliability depends on the full RF layout, not only the receiver model.

Q2. What is the difference between internal and external antenna placement?

Internal placement protects the antenna and keeps the drone easier to pack. External placement usually provides better signal visibility and separation, especially in RF-noisy or longer-range field operations.

Q3. Is higher VTX power enough to improve video link stability?

No. Higher output power can increase heat and electrical stress if the antenna path is poor. Clean antenna placement, cable quality, and RF separation are often more important than chasing peak wattage.

Q4. What is the common mistake buyers make with FPV antenna layout?

Many buyers approve a clean-looking sample without checking whether the antenna layout can be repeated in mass production. A small change in mounting angle or cable route can create inconsistent link performance across the fleet.

Q5. How should I request antenna layout details from a supplier?

Ask for final assembly photos, antenna position drawings, cable routing rules, separation from power wiring, and link validation steps. For confidential custom requirements, confirm how the supplier handles project details before sharing full specifications.
