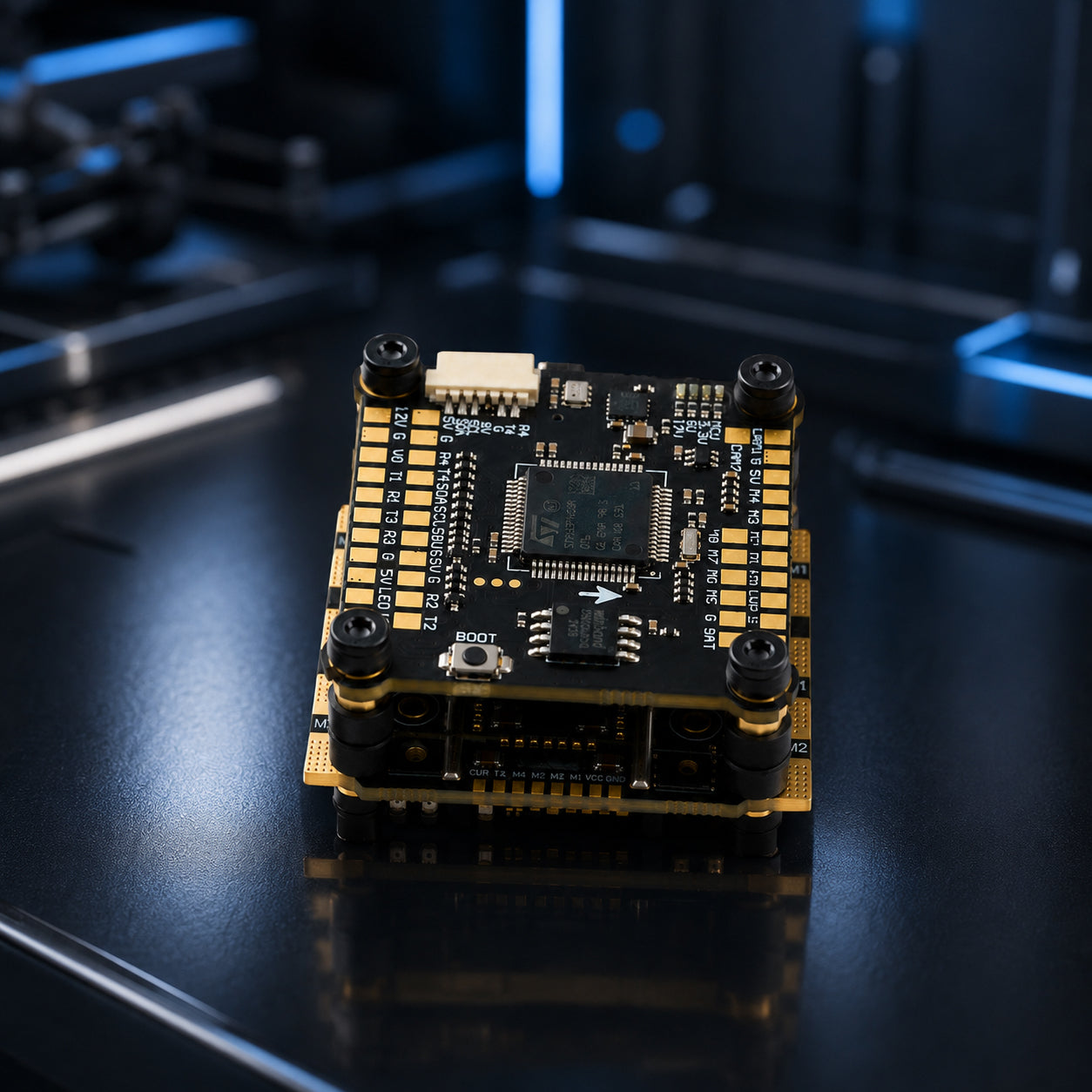

In high-risk field operations, FPV drone failure is rarely caused by one dramatic event. It usually starts with small engineering compromises: exposed solder joints, loose harness routing, poor connector protection, moisture inside the frame, or a hot FPV flight controller stack running too close to the ESC. By the time the operator sees random rebooting, video breakup, receiver dropouts, or motor desync, the real problem has already moved from component choice to system-level reliability.

The consumer sector looks at speed, camera angle, and peak output numbers. A B2B procurement manager has to look at return rate, batch consistency, field repair time, and whether the same protection process can be repeated across 50, 200, or 1,000 units. Hobbyist marketing sells visible specifications. Serious fleet procurement demands risk management at BOM level.

This guide bypasses hobbyist waterproof claims to help you evaluate FPV electronics protection from a pure engineering perspective. For buyers sourcing FPV drone systems for security operations, infrastructure inspection, low-light deployment, or RF-noisy environments, electronics protection is not optional decoration. It is the difference between a stable field asset and a warranty dispute.

1. Understanding Electronics Protection at System Level

Electronics protection is not one material or one sticker on a product page. It includes conformal coating, connector masking, cable strain relief, vibration control, heat management, solder joint inspection, RF isolation, and post-assembly testing. Each part matters because field failure usually comes from combined stress, not a single weak component.

A conformal coating may reduce moisture damage on PCB surfaces. A secured harness may prevent intermittent signal loss after vibration. A cleaner stack layout may reduce heat accumulation. A better LC filter may protect video quality from electrical noise. None of these details are exciting in consumer marketing, but they are non-negotiable in fleet procurement.

The wrong approach does not just reduce reliability — it makes failure hard to diagnose. If a supplier coats every board without masking USB ports, service pads, barometers, or connectors, the buyer may inherit repair problems. If the supplier ignores vibration, even clean electronics can fail after repeated field cycles.

2. When Basic Protection Is Enough

Basic electronics protection can work when the deployment environment is controlled, the fleet is easy to service, and the operating cycle is short. It keeps cost down while still reducing common assembly-level risks.

• Dry operating regions: If the fleet is mainly used in low-humidity areas below 60% relative humidity, full coating may not be necessary for every board.
• Fast maintenance model: Training fleets and distributor demo units may benefit from easier access to ports, pads, and connectors for quick repair.
• Short operating cycles: For flights under 8 to 10 minutes with limited standby time, heat soak and moisture exposure may be easier to control with layout discipline instead of heavy protection layers.

3. When Enhanced Protection Becomes Necessary

Enhanced protection becomes necessary when the drone is expected to operate in rougher field conditions, longer deployment windows, or unpredictable environments. In these cases, the buyer is not paying for cosmetic treatment. The buyer is paying to reduce mission interruption, after-sales conflict, and batch-level uncertainty.

• Humid or coastal environments: Warehousing, sea shipping, and operation in areas above 80% humidity can accelerate corrosion on exposed pads and solder joints.
• Dust, debris, and wet ground exposure: Field operations near construction zones, agricultural areas, industrial sites, or damaged infrastructure can contaminate electronics faster than indoor testing suggests.
• RF-noisy or EMI-heavy zones: When the drone carries video transmitters, ELRS receivers, GPS modules, and high-current ESCs in a compact frame, cable routing and filtering become procurement-level requirements.

4. Common Misconceptions

Waterproof vs Field-Resistant: A coated board does not make a drone waterproof. Real field resistance requires PCB protection, connector planning, cable sealing, drainage awareness, and post-build testing. If a supplier uses one coating layer to claim total protection, that is not engineering. That is sales language.

Component Brand vs Integration Quality: Buyers often argue about flight controller brand, ESC rating, or receiver model, but ignore how these parts are installed together. A premium board mounted in a hot, vibrating, poorly routed stack can fail faster than a mid-range board installed with disciplined engineering.

5. Comparison Table

Factor	Basic Electronics Protection	Enhanced Field Protection
Payload	Lower weight, fewer process steps, easier access for repair	Slight added weight from coating, insulation, mounts, and harness control
Performance	Acceptable for dry regions, short flights, and controlled service cycles	Stronger resistance against humidity, vibration, EMI, dust, and heat accumulation
Adaptation Range	Suitable for training units, demos, and indoor or dry outdoor use	Suitable for security operations, inspection fleets, low-light deployment, and RF-noisy environments
Cost	Lower BOM cost and faster assembly	Higher labor cost due to masking, coating, harness work, and extra testing
Use Case	Price-sensitive batches where repair access matters more than field hardening	Mission-critical fleets where failure cost is higher than controlled production cost

6. Overlooked Engineering Issues

Post-Protection Testing Is Mandatory: Many suppliers test electronics before coating or final installation, then skip full testing afterward. That is a procurement trap. The drone should be tested after coating, after curing, after stack assembly, and after final harness routing. Power-on behavior, motor output, receiver link, video signal, GPS lock, and thermal behavior should all be checked as a complete system.

Wire Movement Can Destroy Good Electronics: In compact FPV frames, vibration can turn a loose wire into a failure point. A receiver wire rubbing against carbon fiber, a VTX cable pressed against a hot component, or a battery lead moving under acceleration can create intermittent faults that are hard to reproduce. For fleet buyers, harness control is not neatness. It is failure prevention.

7. Pre-Procurement Checklist

• Which boards are protected: flight controller, ESC, receiver, VTX, GPS module, camera board, or the full electronics stack?
• What protection method is used: conformal coating, connector masking, heat shrink, silicone sealant, harness tie-down, LC filtering, or isolation mounting?
• Can the supplier provide a masking standard for USB ports, buttons, barometers, service pads, antennas, and connectors?
• Will the drone be tested after protection and final assembly, not only before installation?
• Can the same protection process be locked across mass production, instead of changing materials or routing methods mid-batch?

8. Conclusion

FPV electronics protection is not about making a drone look rugged. It is about controlling the boring failure points that destroy field confidence: moisture, dust, vibration, heat, EMI, and inconsistent assembly.

For B2B buyers, the real question is not whether a supplier can build one strong sample. The question is whether the supplier can repeat the same protection logic across the full fleet.

Reliability is not a feature. It is a process.

FAQ

Q1. Why do FPV drones fail in harsh field conditions?

Most failures come from combined stress: humidity, dust, vibration, heat, and electrical noise. A drone may pass a short bench test but still fail after repeated deployment if the electronics stack is not protected as a system.

Q2. What is the difference between conformal coating and full electronics protection?

Conformal coating is only one part of electronics protection. Full protection also includes connector planning, masking, cable routing, vibration control, heat management, filtering, and final system testing.

Q3. Is enhanced protection always worth the extra cost?

No. For dry regions, short flights, or fleets that require fast board-level repair, basic protection may be more practical. Enhanced protection makes sense when field failure costs more than the extra production process.

Q4. What is the biggest mistake buyers make when requesting rugged FPV drones?

They ask for “waterproof” or “rugged” without defining the operating environment. A serious RFQ should state humidity, dust exposure, standby time, flight duration, payload layout, temperature range, and repair expectations.

Q5. How should I request a quotation for field-protected FPV drones?

Ask the factory to quote protection by board type, coating material, masking map, harness control, post-assembly testing, and batch consistency. If your project has confidential custom parameters, confirm how those details are handled before sharing the full specification.
