In high-risk field operations, the FPV camera is often the first component to meet dust, debris, branches, frame impact, or transport damage. A camera that looks sharp during a bench test may become useless if the lens is scratched, the bracket bends, or the viewing angle shifts after a hard landing. For buyers sourcing FPV cameras and complete aircraft, camera mounting is not only about image quality. It is about survivability and repeatable visibility.

The consumer sector asks, “What is the camera angle?” A B2B procurement manager must ask, “Can the camera keep the same view after repeated deployment, impact, repair, and transport?” Hobbyist marketing sells clean footage. Fleet procurement demands protected vision.

This guide compares recessed and exposed FPV camera mounts from a pure engineering perspective. For infrastructure inspection, perimeter observation, low-light situational awareness, security operations, RF-noisy environments, and rapid field deployment, the wrong camera mount does not just damage a lens — it can remove the operator's primary visual channel.

1. What Camera Mount Protection Actually Controls

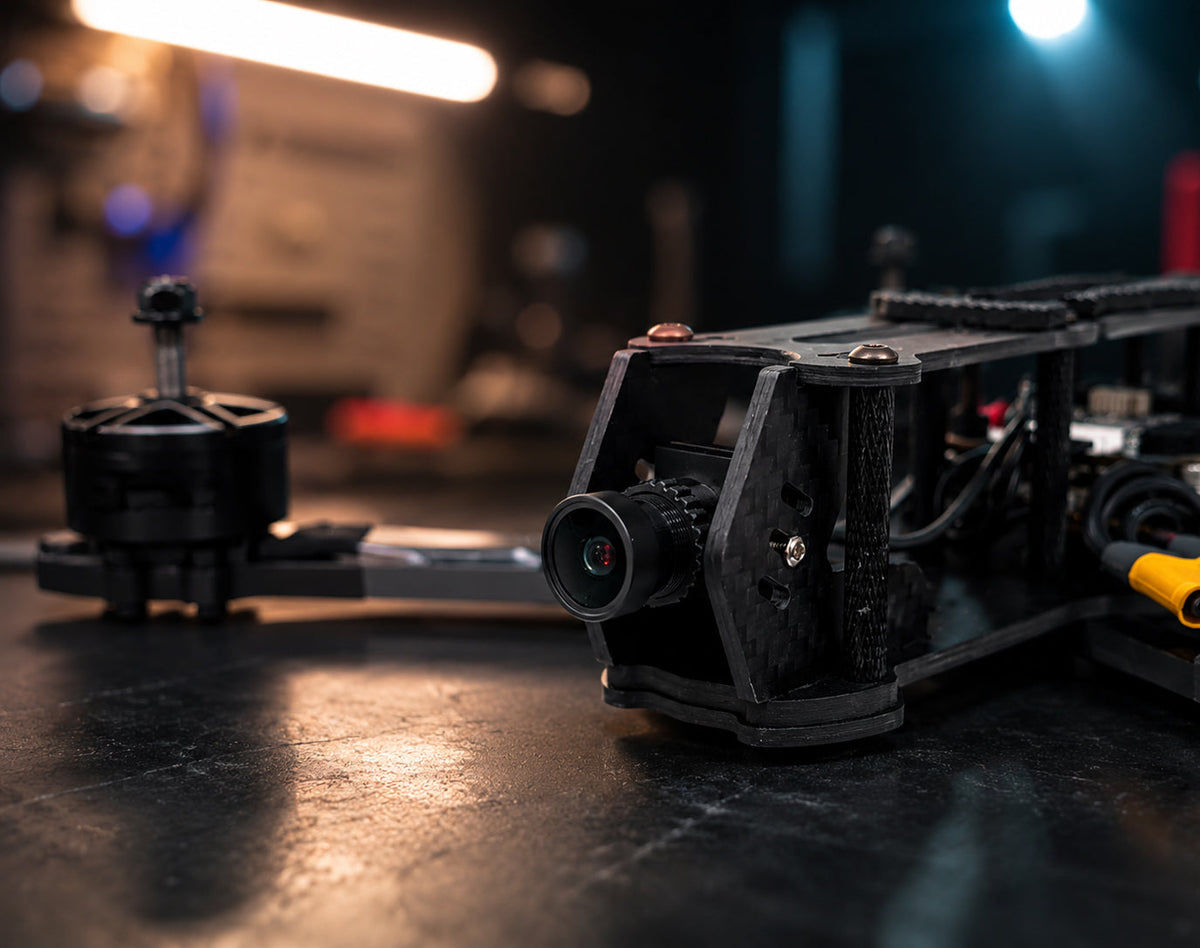

A recessed camera mount places the camera lens behind the front plane of the frame, side plates, bumper, or protective cage. This reduces direct impact risk and helps protect the lens during transport and rough handling.

An exposed camera mount places the camera farther forward, often giving a wider unobstructed field of view and easier access for adjustment or replacement. It can be useful when maximum visibility matters, but it increases the risk of lens impact and bracket deformation.

The wrong choice does not just affect camera safety. It changes field of view, obstacle judgment, vibration behavior, repair time, and whether every aircraft in the batch gives operators the same visual reference.

2. When Recessed Camera Mounting Makes Sense

Recessed mounting is usually stronger when the aircraft is expected to face repeated handling, low-altitude routes, confined spaces, or fast field recovery requirements.

• Impact-prone routes: When aircraft fly near structures, vegetation, windows, cables, or debris, a recessed lens reduces the chance of direct front impact.
• Rapid transport and packing: Protected camera placement helps prevent lens scratches and bracket bending when units are moved in bulk cases.
• Low-light camera protection: More expensive low-light sensors and lenses justify stronger mechanical protection because replacement cost and downtime are higher.

3. When Exposed Camera Mounting Is Still Useful

Exposed mounting remains useful when the operator needs maximum field of view, easier camera service, or wider angle adjustment during testing.

• Maximum forward visibility: Exposed placement can reduce frame obstruction and provide a cleaner view for fast visual judgment.
• Prototype evaluation: During sampling, exposed brackets allow faster camera angle changes before the final production layout is locked.
• Simple repair workflow: If the camera must be replaced frequently, open access can reduce teardown time when the mount is designed with proper screw access.

4. Common Procurement Misconceptions

More Protection vs Better Vision: A camera buried too deeply may suffer from frame shadow, reduced field of view, propeller visibility issues, or blocked low-angle detail. Protection must not destroy the operator's ability to read the scene.

Exposed Lens vs Easier Operation: A fully exposed camera can look clean in test footage, but it may fail faster in repeated field use. If one impact changes the camera angle by 5 degrees, operators may lose consistent visual judgment across the fleet.

5. Recessed vs Exposed Camera Mount Comparison

Factor	Recessed Camera Mount	Exposed Camera Mount
Payload	Better protection for heavier or higher-value camera modules	Lower structural coverage and easier access around the camera
Performance	Improves lens survival but may restrict extreme field of view	Provides cleaner visibility but increases impact exposure
Adaptation Range	Confined routes, low-light deployment, rough handling, and rapid field fleets	Testing, open-area operation, and builds where maximum viewing angle matters
Cost	Higher frame design and machining control cost	Lower structural complexity but higher lens and bracket damage risk
Use Case	When camera survivability and repeatable view are non-negotiable	When visibility, adjustment speed, and service access matter more

6. Overlooked Engineering Issues

Side Plate Thickness Can Block the Image: A recessed camera needs protection without tunnel vision. If side plates are too thick or the lens sits too far back, the frame may appear in the image during turns or low-angle movement.

Camera Angle Must Be Locked: A 10-degree difference in camera angle can change flight speed, obstacle judgment, and operator confidence. The final angle should be documented with mounting-hole position, bracket type, and inspection photos.

Lens Replacement Access Matters: Protection is useful only if service remains possible. If replacing a lens requires removing the full stack, VTX, or front frame, field repair time increases sharply.

Vibration Can Move the Bracket: A weak camera bracket may shift after repeated vibration or impact. Screw locking, bracket material, damping method, and carbon cut tolerance should be part of the production standard.

7. Pre-Procurement Checklist

• Is the camera recessed, exposed, or partially protected in the final production frame?
• What camera angle, lens position, side-plate clearance, and bracket material are locked?
• Can the frame protect the lens without blocking the required field of view?
• Can the camera or lens be replaced without removing unrelated electronics?
• Will the supplier provide final assembly photos showing camera position, screw access, and view clearance?

8. Conclusion

Recessed camera mounts are stronger when survivability and repeatable field vision matter. Exposed mounts remain useful when maximum visibility and fast adjustment are the priority.

For B2B buyers, the camera mount should be selected by operating environment, repair model, and required field of view, not by appearance alone.

The camera is not protected when it looks safe. It is protected when it keeps seeing after impact.

FAQ

Q1. Is a recessed FPV camera mount always better?

No. Recessed mounting improves lens protection, but it can reduce field of view if the frame design is too tight. The mount must protect the camera without blocking the operator's visual reference.

Q2. Why does camera angle matter for FPV fleets?

Camera angle affects cruising speed, obstacle judgment, and operator response. If the angle changes between aircraft, the fleet will not feel consistent during field deployment.

Q3. What causes FPV camera brackets to move?

Common causes include vibration, loose screws, weak bracket material, poor carbon tolerance, transport impact, and repeated hard landings. Bracket design should be tested after final assembly.

Q4. What is the biggest mistake buyers make with camera protection?

Many buyers focus only on camera model and ignore mounting depth, lens clearance, bracket stiffness, screw access, and repair time. A good camera can still fail if the mount is poorly designed.

Q5. What should I send for a camera mount quotation?

Send aircraft size, camera model, required field of view, operating environment, preferred protection level, repair requirement, and order quantity. Confidential field parameters can be reviewed before the final frame and camera layout are locked.
