In demanding field deployments, a video-link failure is not always caused by VTX power level or antenna gain. Sometimes the failure starts at the connector: a loose U.FL plug, a stressed coax cable, a cracked solder joint, or an MMCX connector mounted where it cannot survive repeated handling. For buyers sourcing FPV video transmitters, connector choice is not a tiny hardware detail. It affects video reliability, repair speed, and batch consistency.

The consumer sector looks at wattage and antenna shape. A B2B procurement manager must ask, “Will the antenna connection survive vibration, transport, fast replacement, and repeated field use?” Hobbyist marketing sells signal distance. Fleet procurement demands mechanical retention.

This guide bypasses consumer VTX selection habits to compare U.FL and MMCX connectors from a pure engineering perspective. For high-risk field operations, security operations, RF-noisy environments, and rapid deployment fleets, a weak antenna connector does not just reduce image quality. It can take an aircraft out of service.

1. What U.FL and MMCX Actually Do

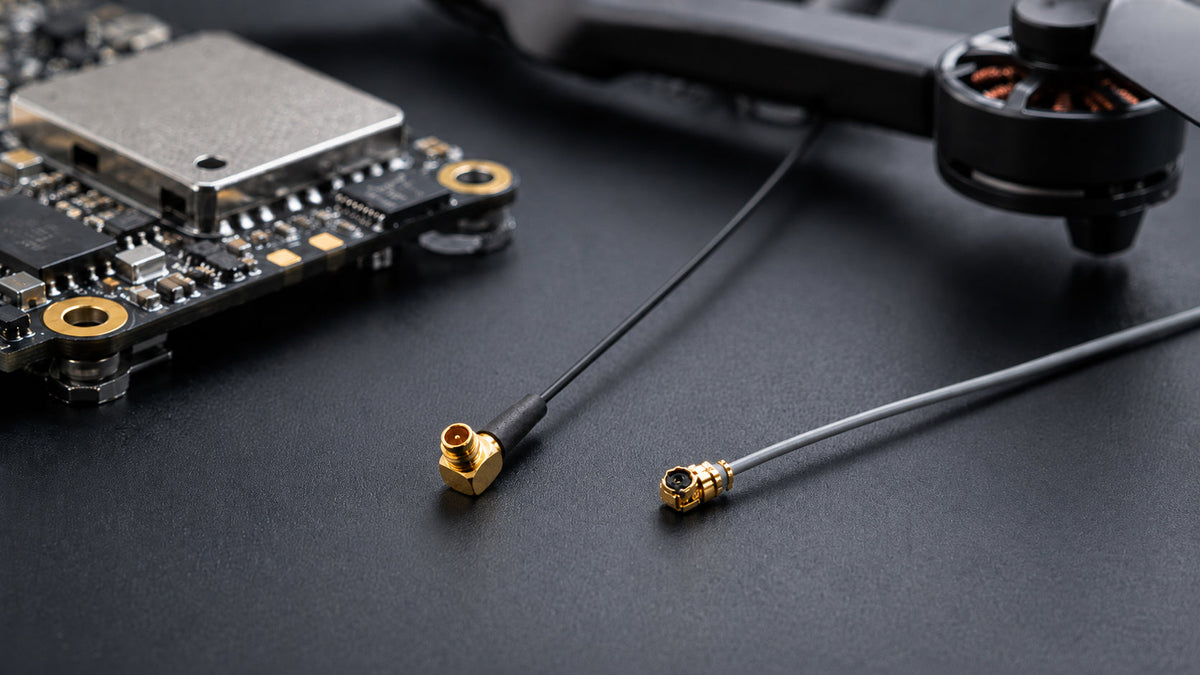

U.FL and MMCX are compact RF connectors used between FPV video transmitters and antenna cables. Both carry high-frequency signal, but they are built for different mechanical conditions.

U.FL is very small and lightweight. It is useful for compact builds where board space and weight matter. However, it has limited retention strength and can be damaged by repeated plugging, poor cable routing, or vibration.

MMCX is larger and usually offers stronger mechanical retention. It is better suited to aircraft where the antenna cable may experience more handling, vibration, or field replacement. But it also takes more board space and can stress the VTX if the cable is routed badly.

The wrong choice does not just affect convenience. It changes repairability, failure rate, and how long the aircraft stays operational after transport or impact.

2. When U.FL Is the Better Choice

U.FL makes sense when the aircraft is compact, the antenna cable is protected, and the VTX is not expected to be disconnected frequently.

• Compact aircraft: Small FPV frames benefit from U.FL because it saves board space and reduces connector weight.
• Protected antenna routing: If the coax cable is fixed, strain-relieved, and protected inside the frame, U.FL can perform reliably.
• Factory-locked builds: When the antenna is installed once and rarely touched, U.FL can support a clean production layout.

3. When MMCX Becomes the Safer Choice

MMCX becomes more suitable when the aircraft is larger, the antenna is exposed, or the field team may replace antennas and VTX modules more often.

• High-vibration field use: MMCX generally provides stronger retention than U.FL, reducing the chance of the antenna cable loosening during operation.
• Serviceable VTX layout: If antennas or VTX units may be replaced during fleet maintenance, MMCX is easier to handle without damaging the board.
• Larger aircraft: 7-inch and larger platforms often have enough space for MMCX connectors and safer cable routing.

4. Common Procurement Misconceptions

Small Connector vs Weak Connector: U.FL is not automatically unreliable. It becomes unreliable when the coax cable is unsupported, bent too tightly, or pulled during antenna replacement. With correct strain relief, it can work well in compact aircraft.

Stronger Connector vs Stronger System: MMCX has better retention, but it cannot fix bad antenna placement, poor cable routing, or heavy antenna load pulling directly on the VTX board. Mechanical strength must be designed into the full assembly.

5. U.FL vs MMCX Comparison

Factor	U.FL Connector	MMCX Connector
Payload	Very light and compact, suitable for tight VTX layouts	Larger and heavier, but stronger for repeated field handling
Performance	Good RF performance when cable strain is controlled	Good RF performance with stronger mechanical retention
Adaptation Range	Small aircraft, protected antennas, factory-fixed VTX builds	Larger aircraft, exposed antenna layouts, serviceable field fleets
Cost	Lower connector and board-space cost	Higher hardware cost but lower risk during repeated maintenance
Use Case	When compactness and locked assembly matter most	When antenna retention and repairability are non-negotiable

6. Overlooked Engineering Issues

Coax Strain Relief Matters More Than Connector Type: A good connector can still fail if the coax cable is allowed to move freely. The cable should be tied down before it reaches the connector so vibration and antenna impacts do not transfer directly into the VTX board.

Repeated Plugging Damages Small RF Connectors: U.FL connectors are not designed for careless repeated removal. If the field team frequently changes antennas, MMCX or a stronger serviceable layout may reduce long-term damage.

Connector Direction Affects Repair Access: A connector hidden under the top plate may be impossible to inspect without removing the stack. Buyers should approve the final VTX mounting position with real access photos, not only the board specification.

Antenna Load Can Crack the Board: A rigid antenna mounted directly on the VTX connector can transfer impact force into the PCB. For field aircraft, antenna extensions, flexible coax, and external mounts should be considered to protect the transmitter.

7. Pre-Procurement Checklist

• Does the VTX use U.FL, MMCX, SMA, or another RF connector in the final production build?
• Is the coax cable strain-relieved before it reaches the VTX connector?
• Will the antenna be replaced frequently during field maintenance?
• Can the connector be inspected or serviced without removing the full electronics stack?
• Is the antenna load supported by the frame instead of pulling directly on the VTX board?

8. Conclusion

U.FL is useful when compactness, low weight, and protected routing matter. MMCX is stronger when antenna retention, service access, and repeated handling matter more.

For B2B FPV buyers, the connector should be selected according to aircraft size, maintenance model, antenna exposure, and production repeatability.

A video link is only as strong as the connection nobody checks.

FAQ

Q1. Is MMCX better than U.FL for FPV video transmitters?

MMCX usually provides stronger mechanical retention, but it is larger and heavier. U.FL can still work well in compact builds if the coax cable is protected and not removed frequently.

Q2. Why does FPV video cut out after vibration or impact?

The antenna connector may loosen, the coax cable may be damaged, or the VTX solder joint may crack. These issues can pass a short bench test but fail under field vibration.

Q3. Can a U.FL connector be used in field FPV drones?

Yes, but the cable must be strain-relieved and protected. U.FL should not carry antenna movement or impact load directly into the VTX board.

Q4. What is the biggest mistake buyers make with VTX connectors?

Many buyers specify VTX output power but ignore connector type, antenna weight, cable routing, and service access. That creates avoidable video-link failures after delivery.

Q5. What should I ask before ordering FPV video transmitters?

Ask for connector type, antenna cable length, strain relief method, final VTX mounting position, antenna support design, and post-assembly video-link testing. Confidential field requirements can be reviewed before the BOM is locked.
