Overview
Designed for 10-inch industrial FPV drone applications and commercial heavy-payload multicopters, the QINKOFPV 3115-900KV Brushless Motor delivers exceptionally stable power output, highly efficient operating performance, and reliable overall durability. It is perfectly suited for demanding enterprise drone systems that require consistent motor response, strong thrust capability, and dependable long-term operation under intense commercial flight conditions.
Built for maximum thermal stability and efficient power conversion, this motor supports highly reliable power delivery across a wide range of intense working environments. Fully optimized for 6S LiPo power systems and seamlessly compatible with standard 60A ESCs, it provides highly practical integration flexibility and perfectly balanced output for large-scale 10-inch FPV fleets.
🚀 Core Features & Advantages
• Optimized 10-Inch Propulsion: Precision-engineered with a 3115 stator size and 900KV configuration, specifically tuned to deliver perfectly balanced thrust and highly responsive flight dynamics for 10-inch commercial platforms.
• Efficient Power Conversion: Capable of handling a robust maximum power output of 1000W and a peak current of 45A, ensuring reliable lift capacity without thermal throttling during extended missions.
• Dependable Thrust Output: Generates up to 3300g of perfectly stable pull force per motor, providing incredibly dependable load-bearing capability for demanding industrial payloads and camera systems.
• Industrial-Grade Durability: Built with premium, 100% original QINKOFPV components and rigorously quality-tested to guarantee long-term operational consistency and structural resilience.
• Seamless System Integration: Features an ultra-low internal resistance (90mΩ) and standard mounting configurations, allowing rapid and flawless integration into enterprise drone assembly lines.
📊 Technical Specifications
• Model: QINKOFPV 3115-900KV
• KV Value: 900KV
• Nominal Voltage: 6S LiPo
• Applicable ESC: 60A
• Max Continuous Power: 1000W
• Max Current: 45A
• Max Thrust (Pull): 3300g
• Internal Resistance (Ri): 90mΩ
• Shaft Diameter: Ø4.0mm
• Motor Dimensions: Ø38.0mm × 38.0mm
• Net Weight: 112g (including cables)
• Slot Pole Configuration: 12N14P

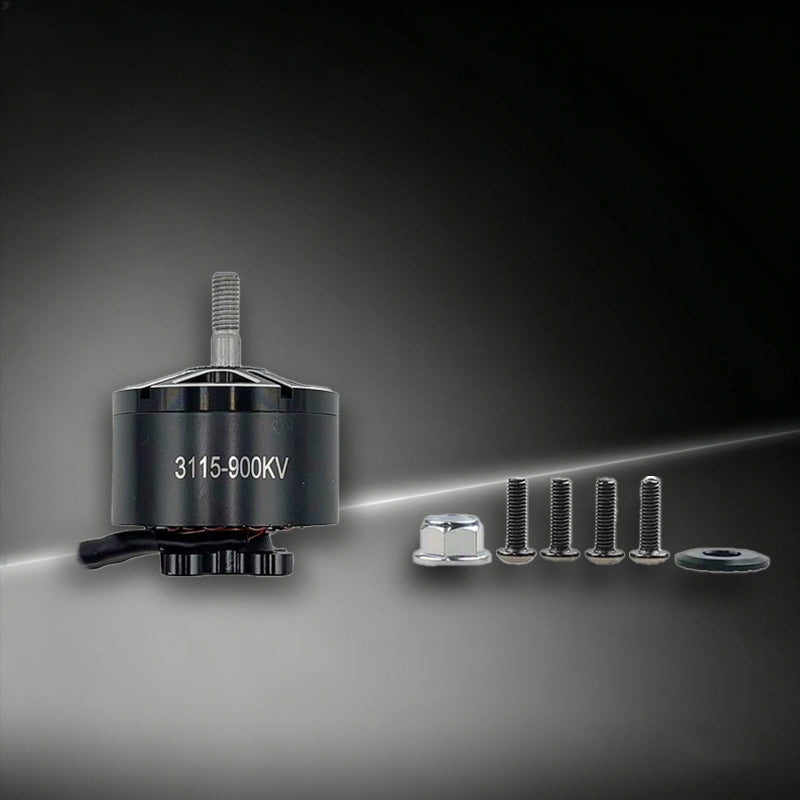

📦 Package Includes
• 1 × QINKOFPV 3115-900KV High-Efficiency Brushless Motor
• 1 × Comprehensive Mounting Screws Set
• 1 × English User Manual
🤝 B2B Wholesale & OEM Supply
As a dedicated manufacturing facility, QINKOFPV strictly serves B2B clients, regional distributors, and enterprise drone manufacturers.
• Baseline: B2B Only | Minimum Order Quantity (MOQ): 100 Units.
• OEM/White-Label: We offer full customization and non-disclosure agreement (NDA) compliance to protect your commercial project margins.
• Bulk Pricing: Contact our B2B sales team directly for tiered wholesale discounts and industrial integration support.
