Overview
Designed for extreme heavy-payload commercial multicopters and industrial FPV drone applications, the QINKOFPV 4315-480KV High-Power Brushless Motor delivers uncompromising power output, highly reliable operating performance, and enduring structural durability. It is the ultimate propulsion solution for enterprise FPV drone systems that require perfectly consistent motor response, massive thrust delivery, and dependable long-term use under intense industrial conditions.
Built with a premium CNC-machined aluminum alloy housing, the motor provides exceptionally effective heat dissipation and incredible structural resilience. Featuring a heavy-duty Ø6mm precision shaft and optimized for 8S high-voltage power systems, it guarantees perfectly stable rotation and seamless integration across the most demanding heavy-lift FPV platforms.
🚀 Core Features & Advantages
• Extreme Heavy-Lift Propulsion: Generates an astonishing maximum thrust of up to 7000g (7 kg) per motor, providing incredibly dependable lift capability for massive commercial payloads.
• Robust Power Conversion: Capable of handling a staggering 2740W maximum power output and a peak current of 95A, ensuring your heavy-lift drones never experience power throttling.
• Industrial-Grade Thermal Management: Encased in a premium aluminum alloy housing designed for maximum aerodynamic cooling, preventing overheating during extended commercial flights.

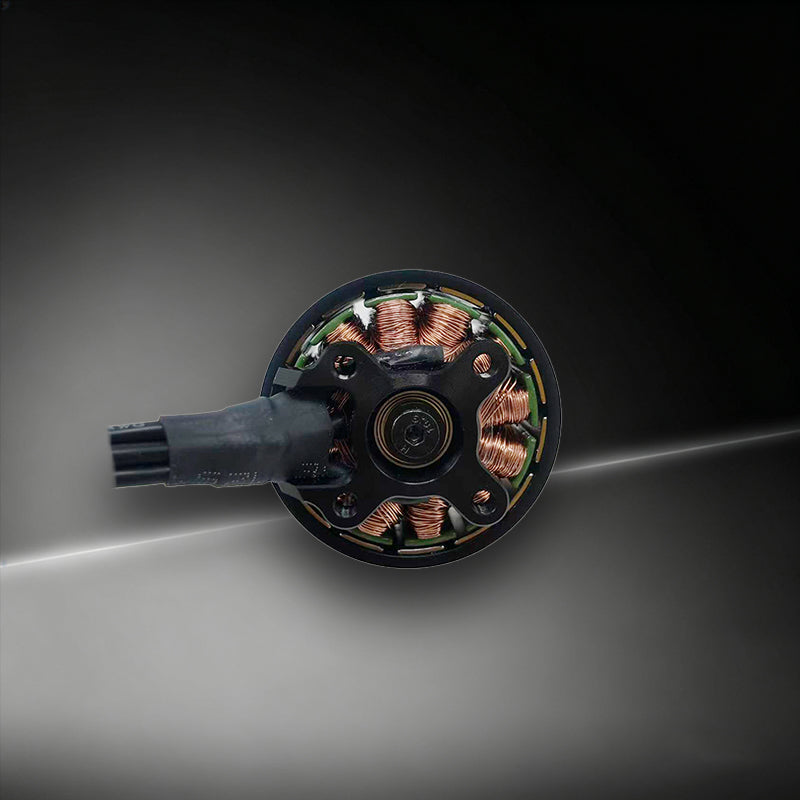

• Precision Engineering: Equipped with an ultra-durable Ø6mm shaft and standard 4×M4 (Ø28mm) base mounting, capable of withstanding extreme mechanical stress and intense structural loads.
• Exceptional Efficiency: Precisely tuned with a 480KV configuration and ultra-low internal resistance (32mΩ) for optimized energy consumption on 8S LiPo setups.
📊 Technical Specifications
• Model: QINKOFPV 4315-480KV
• KV Value: 480KV
• Nominal Voltage: 8S LiPo (Compatible with 6-12S Systems)
• Max Continuous Power: 2740W
• Max Current: 95A
• Max Thrust (Pull): 7000g (7 kg)
• Internal Resistance (Ri): 32mΩ
• Shaft Diameter: Ø6mm
• Shaft Extension Length: 25mm
• Base Mounting Thread: 4 × M4 (Ø28mm Spacing)
• Recommended Propeller: 13-Inch (e.g., HQ13×6×3)
• Motor Dimensions: Ø50mm × 60mm
📦 Package Includes
• 1 × QINKOFPV 4315-480KV High-Power Brushless Motor
• 1 × High-Strength Mounting Screws Set
• 1 × English User Manual
🤝 B2B Wholesale & OEM Supply
As a dedicated manufacturing facility, QINKOFPV strictly serves B2B clients, regional distributors, and enterprise drone manufacturers.
• Baseline: B2B Only | Minimum Order Quantity (MOQ): 100 Units.
• OEM/White-Label: We offer full customization and non-disclosure agreement (NDA) compliance to protect your commercial project margins.
• Bulk Pricing: Contact our B2B sales team directly for tiered wholesale discounts and industrial integration support.
