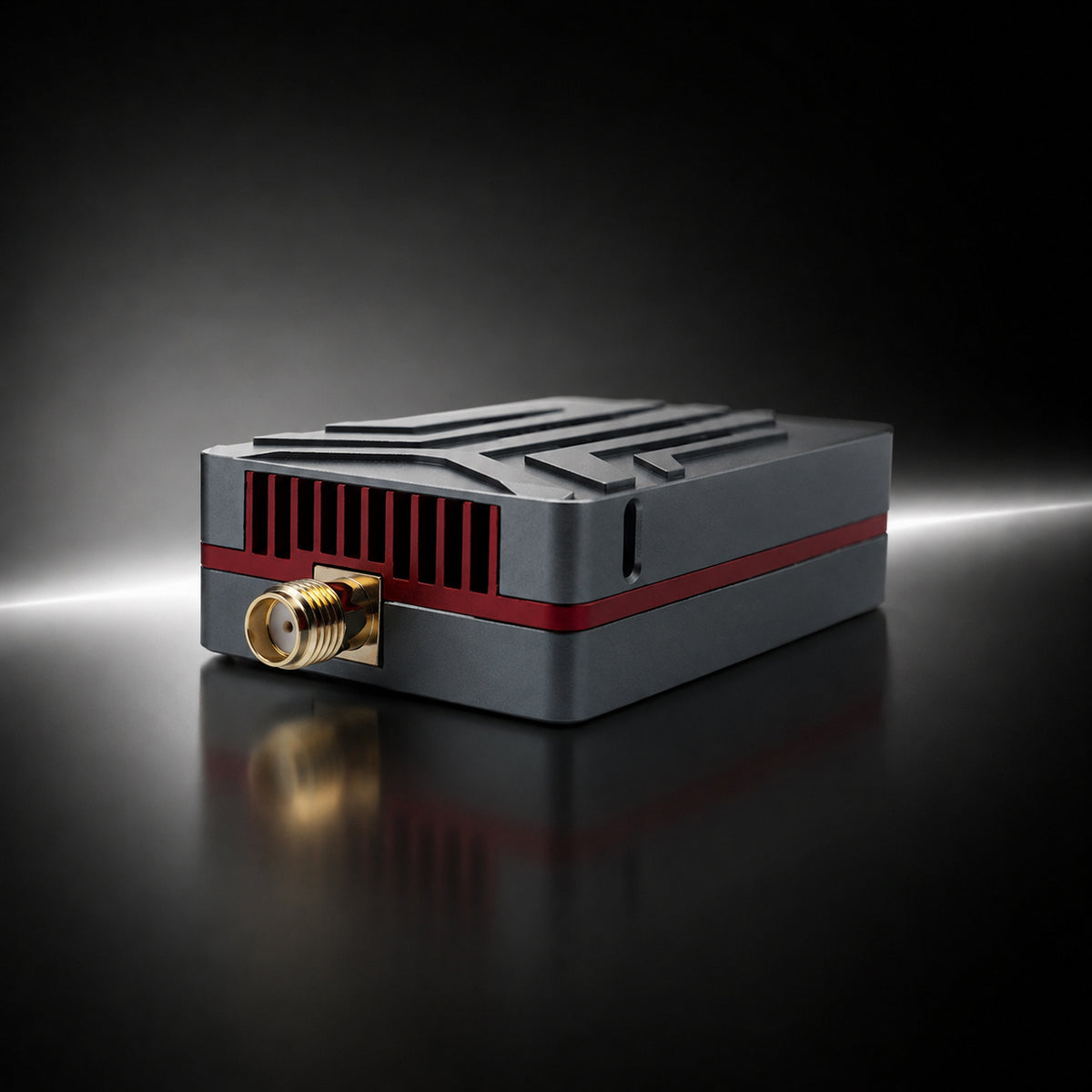

5.8GHz 10W FPV Video Transmitter
Configure your FPV video link with five selectable RF power levels and 64 channels across eight frequency bands. This video transmitter offers output settings of 0.5W, 2W, 5W, 8W and 10W, allowing you to select the power level for your operating requirements.
A 7–36V DC input range provides flexibility for power-system integration. Measuring 66 × 36 × 16 mm and weighing approximately 45 g, the unit provides clear size and weight specifications for airframe planning. An SMA female antenna connector and an 8-pin GH1.25 interface provide the antenna, power, video and control connections.
Key Features
-
Five selectable power levels: choose from 0.5W, 2W, 5W, 8W and 10W using the onboard PWR button.
-
64 channels across eight bands: select the frequency to match your compatible receiver.
-
7–36V DC input: supports integration with power systems within the specified voltage range.
-
Onboard button controls: adjust power, band and channel directly on the transmitter.
-
LED status indicators: separate indicators show the selected power level, frequency band and channel.
-
Overtemperature protection: reduces RF output power or stops transmission when thermal protection is activated.
-
Approximately 45 g: with a 66 × 36 × 16 mm enclosure and a mounting pattern shown as 30.5 × 30.5 mm in the manufacturer drawing.
Specifications
5.8GHz 10W Video Transmitter Specifications
| Product Type |
FPV Video Transmitter (VTX) |
| Manufacturer-Specified Frequency Range |
4900–6000 MHz |
| Channels |
64 |
| Frequency Bands |
8 bands: A, B, E, F, R, O, L and X |
| Selectable RF Output Power |
0.5W / 2W / 5W / 8W / 10W |
| Supply Voltage |
7–36V DC |
| Antenna Connector |
SMA Female |
| Wiring Connector |
8-pin GH1.25 |
| Interface Signals |
Power Input, GND, IRC, VIDEO and +5V Output |
| Dimensions |
66 × 36 × 16 mm |
| Mounting Hole Spacing |
30.5 × 30.5 mm, as shown in the manufacturer drawing |
| Weight |
Approximately 45 g |
| Operating Ambient Temperature |
-10°C to +60°C |
| Protection |
Overtemperature protection with RF power reduction or transmission shutdown |
Onboard Controls
-
Power: short-press PWR to cycle through the five output power levels.
-
Channel: short-press FRE to cycle through channels 1–8 within the selected band.
-
Band: press and hold FRE for 3 seconds to switch to the next frequency band.
-
Status: red, blue and green LED indicators show power, band and channel respectively through flash counts.
Installation and Compatibility
Match the transmitter's selected frequency to your receiver before use. Refer to the manufacturer's channel table for the exact channel frequencies; the stated frequency range does not mean that every frequency within that range is selectable.
Connect a suitable antenna to the SMA connector before applying power. Confirm the supply voltage, polarity and connector pin assignments before installation. The +5V pin is an output and must not be used as the main power input.
Maintain airflow around the transmitter during operation. If overtemperature protection activates, RF output may be reduced or transmission may stop.
